Concealed Panel System

GageWoven can be specified as sheet goods for fabrication by the installing contractor.

In the concealed panel system (referred to as CPS), the wire mesh is secured to the backer panel using a concealed attachment method, either using pressure sensitive adhesive, wire or other attachment techniques. Not all of our standard patterns are suitable for this system. This system is often used for elevator cab interiors, elevator lobbies, and feature walls. Opaque designs do not require a background material; however, open mesh designs can be enhanced with the use of a custom color laminate or other decorative material.

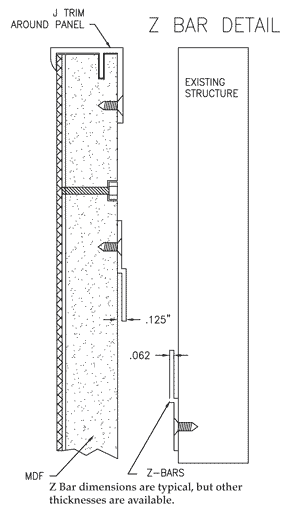

CPS - Z Bar

CPS - System 1

CPS - System 2

Concealed Panel System printable PDF

Wire Attachment for Fine-Medium Mesh on Backer PDF

Screw Attachment for Opaque Mesh on Backer PDF
