GageWoven Standard Designs

GageWoven is an innovative collection of architectural wire mesh appropriate for a variety of applications. The material is particularly suitable for in-fill panels, elevator lobbies and cab interiors, feature walls, ceilings, plus other architectural fabrication and consumer products. GageWoven is manufactured in the Midwest United States of America.

Standard Design Specification Matrix

Design Number Design Name Mesh Category % Open Area Weight lbs per SF Max “W” Dimension Max “H” Dimension Thickness “W” DIM ALLOY “H” DIM ALLOY Mixed Metals

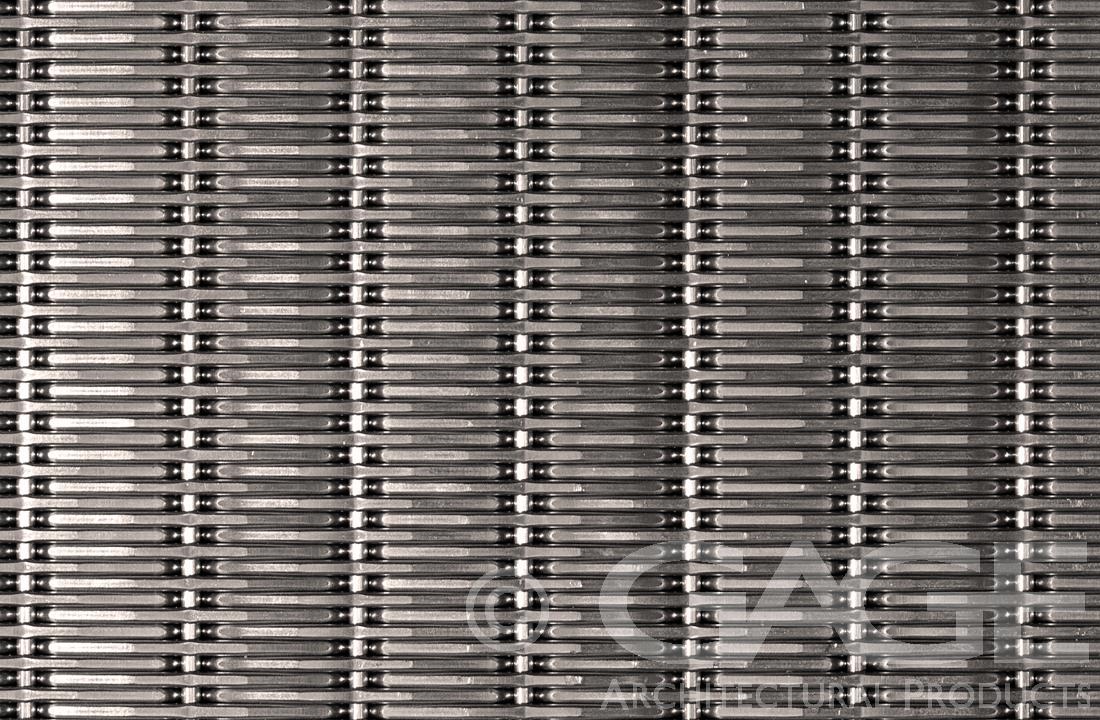

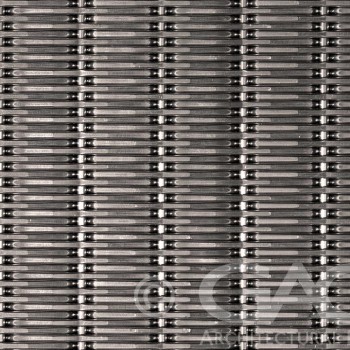

GW900 Escalator Opaque 0.00% 2.200 60″ 120″ 0.206″ SS SS No
GW901 Guardian Opaque 0.00% 4.270 60″ 120″ 0.255″ SS SS No

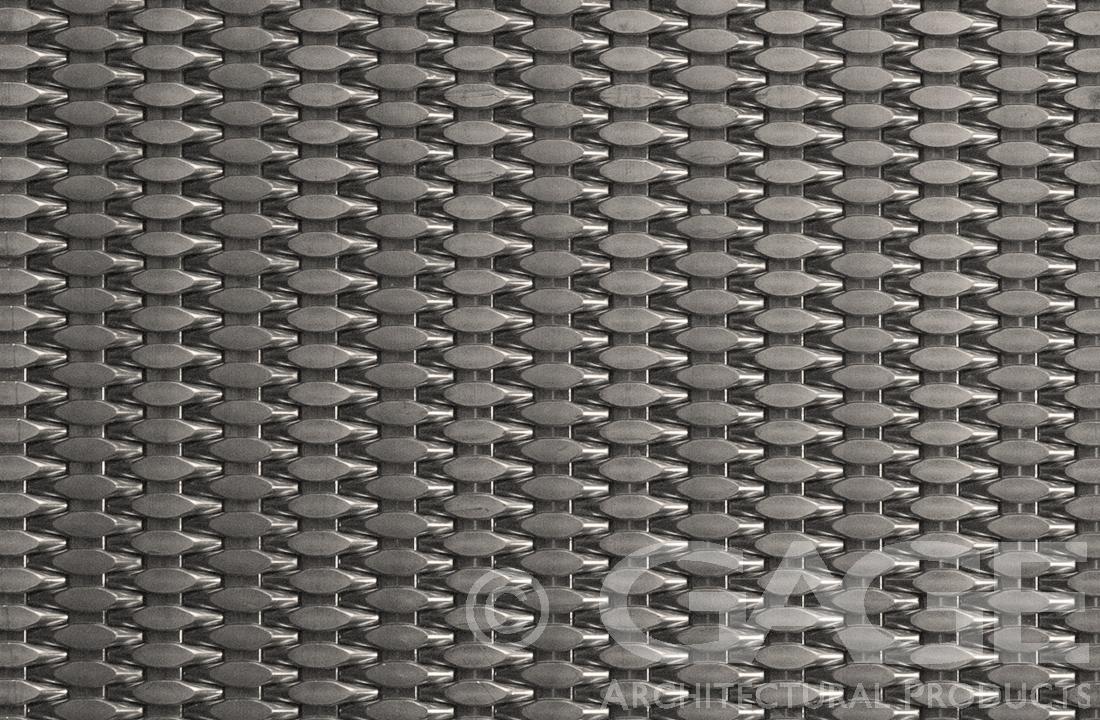

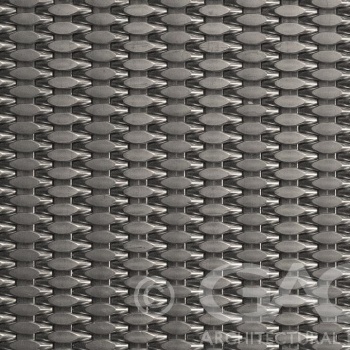

GW902 Snakeskin Opaque 0.00% 3.250 60″ 120″ 0.123″ SS SS No

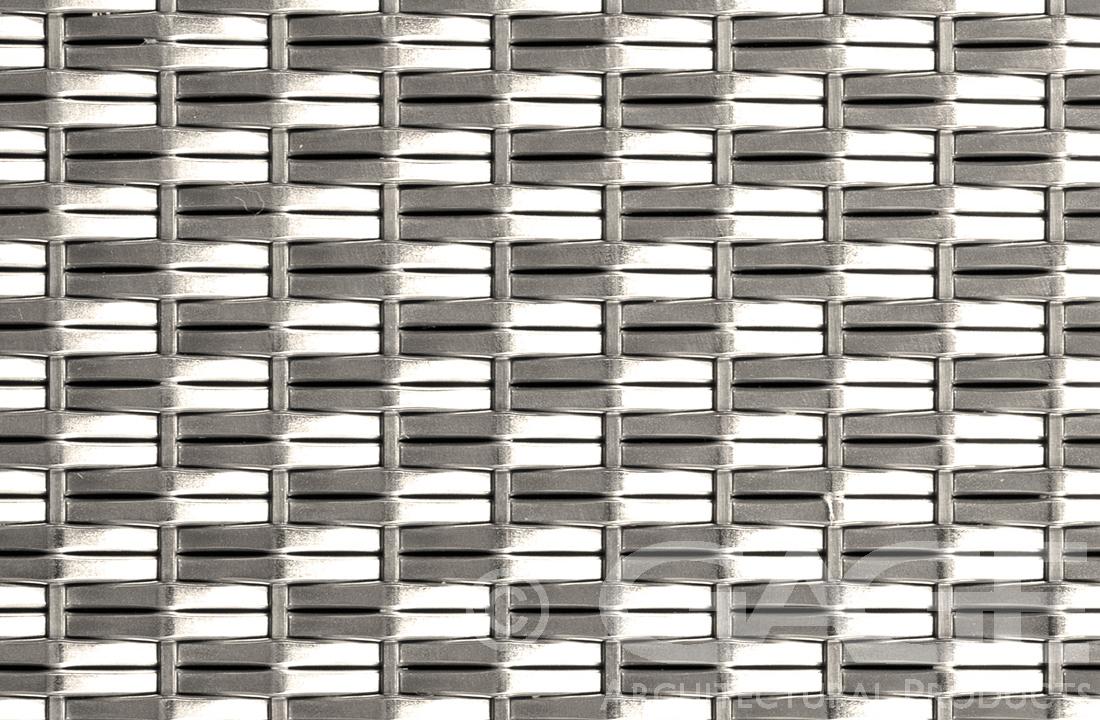

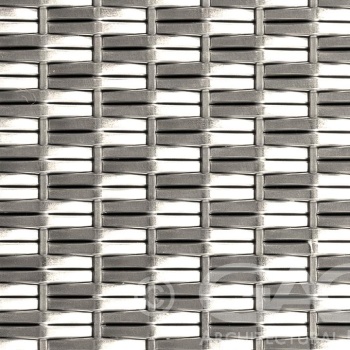

GW903 Baroda Opaque 0.00% 1.850 60″ 120″ 0.105″ SS SS No
GW905 Watchband Opaque 0.00% 3.750 60″ 120″ 0.241″ SS SS No

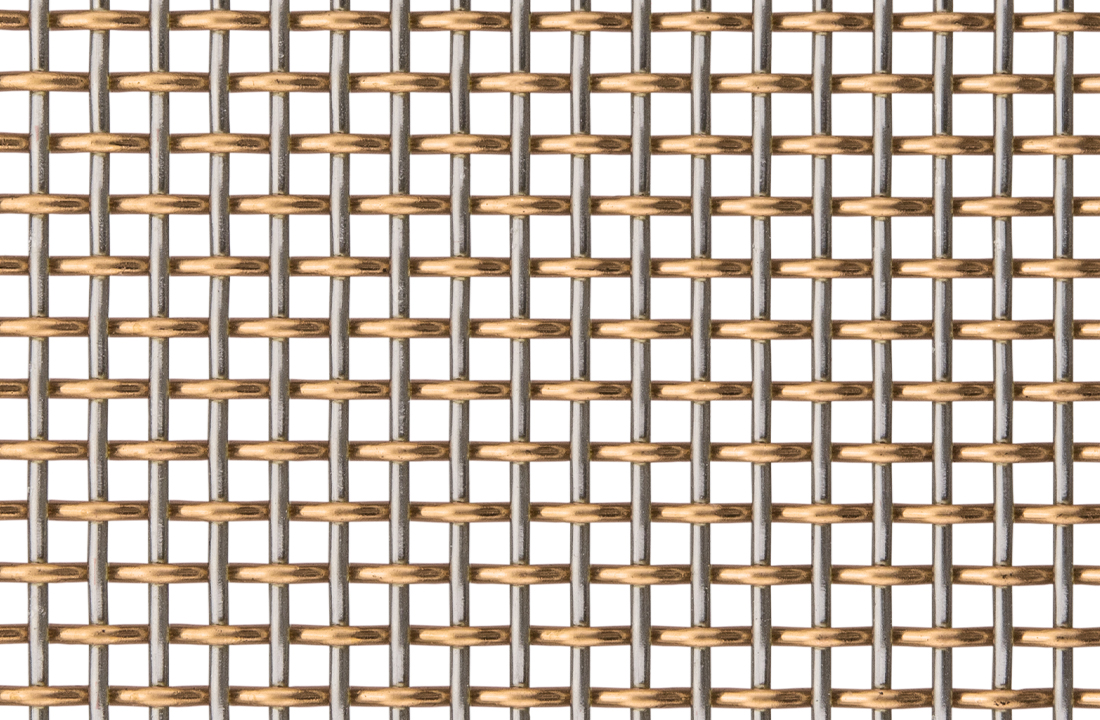

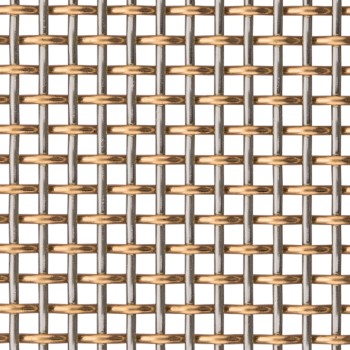

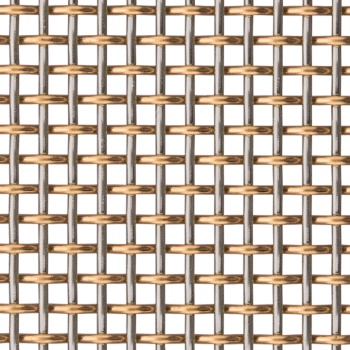

GW906 Round Symmetry Fine 44.00% 1.400 72″ 240″ 0.126″ SS, CB, C, B SS, CB, C, B Yes**
GW907 Metal Steps Medium 30.00% 2.230 60″ 168″ 0.198″ SS SS No

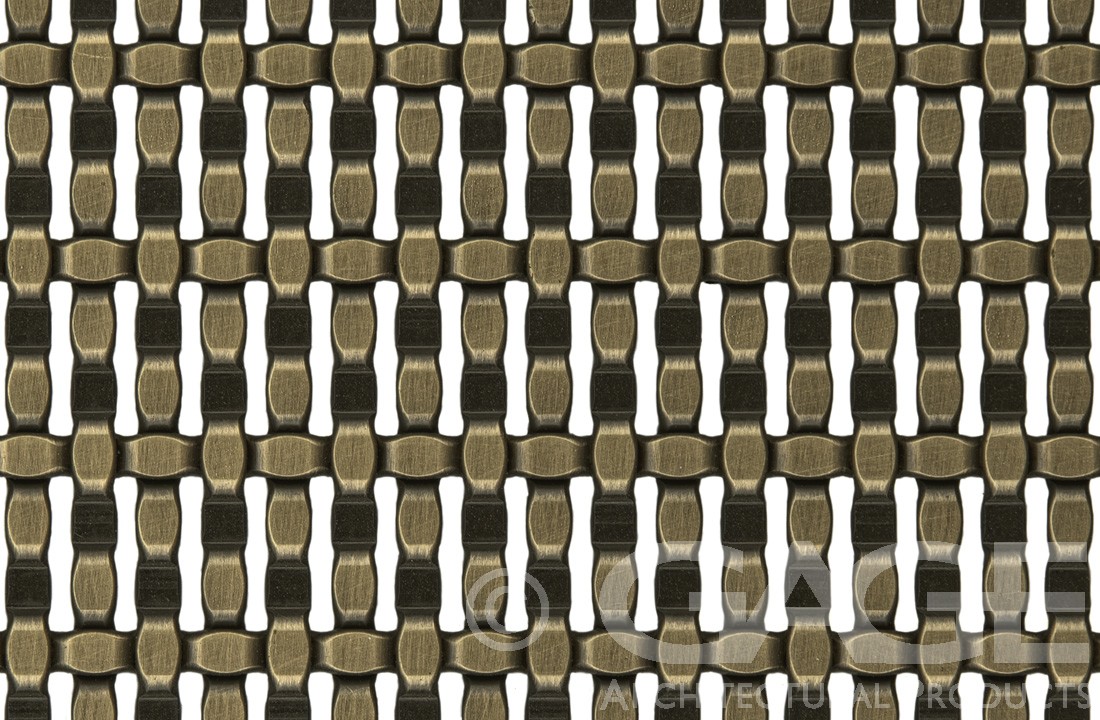

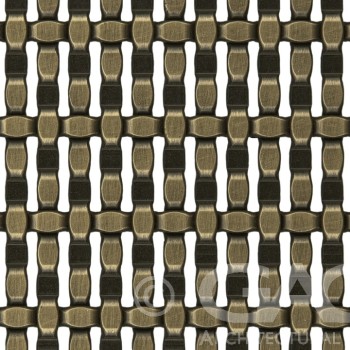

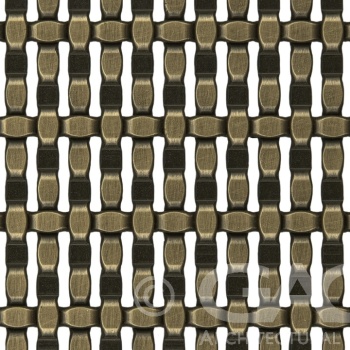

GW908 Jewel Path Fine 27.30% 2.490 60″ 168″ 0.130″ SS, CBA SS, CBA No

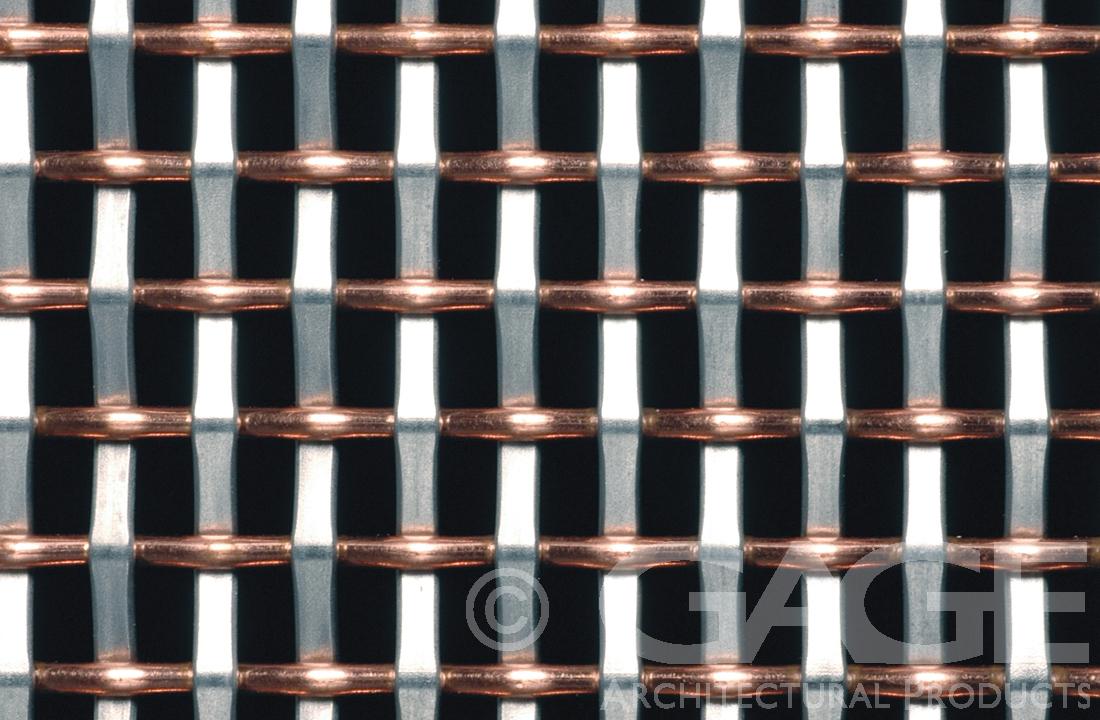

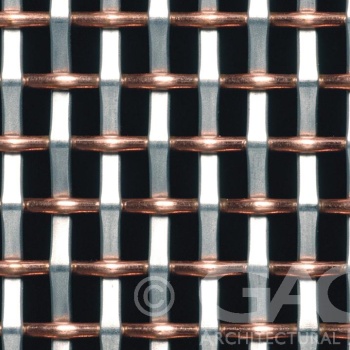

GW909 St. Paul Fine 41.10% 1.630 72″ 120″ 0.140″ SS, CB, C, B SS Yes*

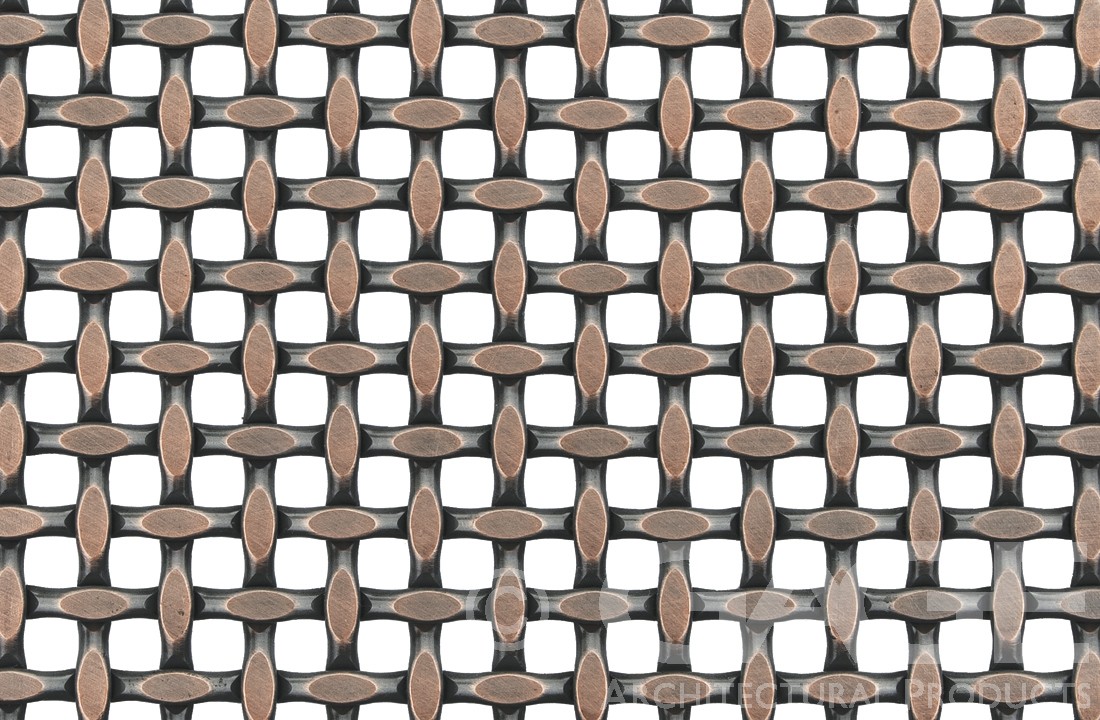

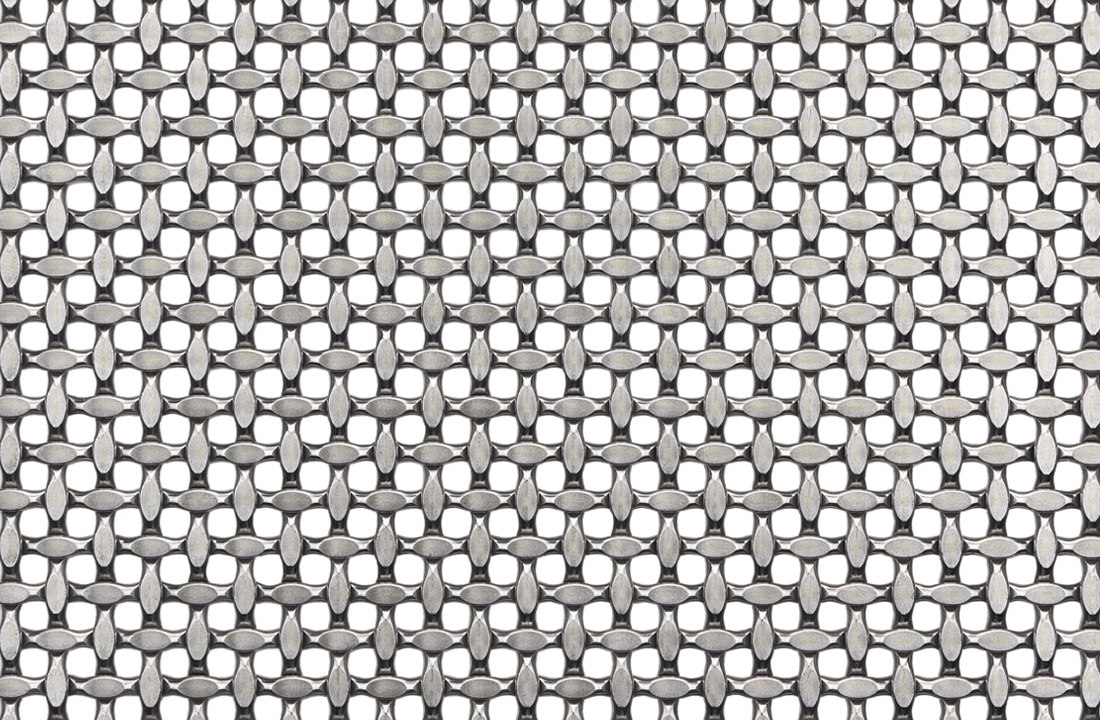

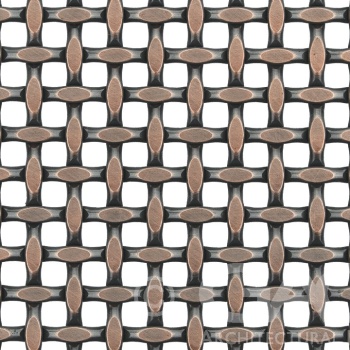

GW910 Ice Dancer Medium 36.90% 2.940 60″ 168″ 0.156″ SS SS No

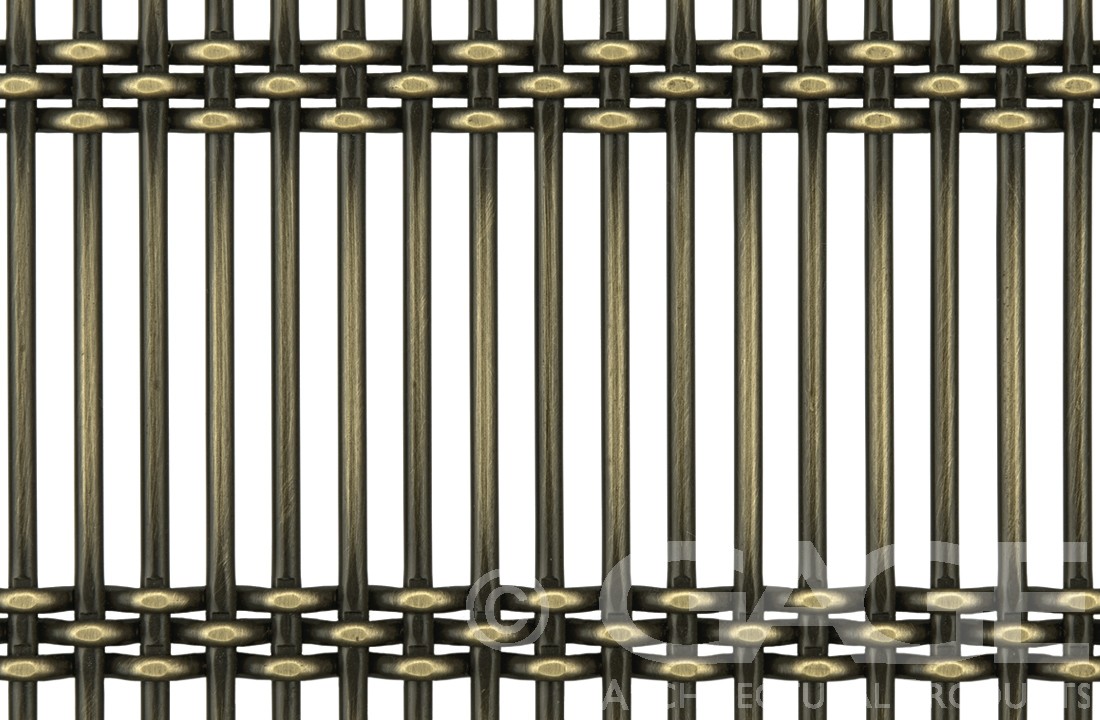

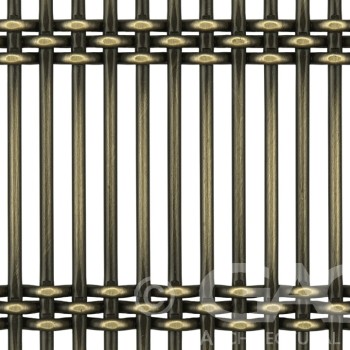

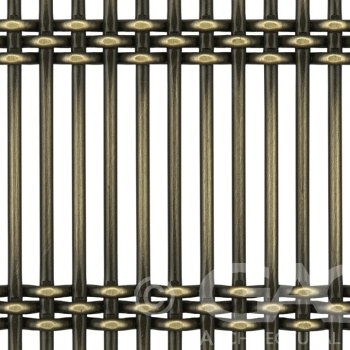

GW911 Venetian Medium 42.30% 2.300 96″ 168″ 0.290″ SS, CB, C, B SS Yes*

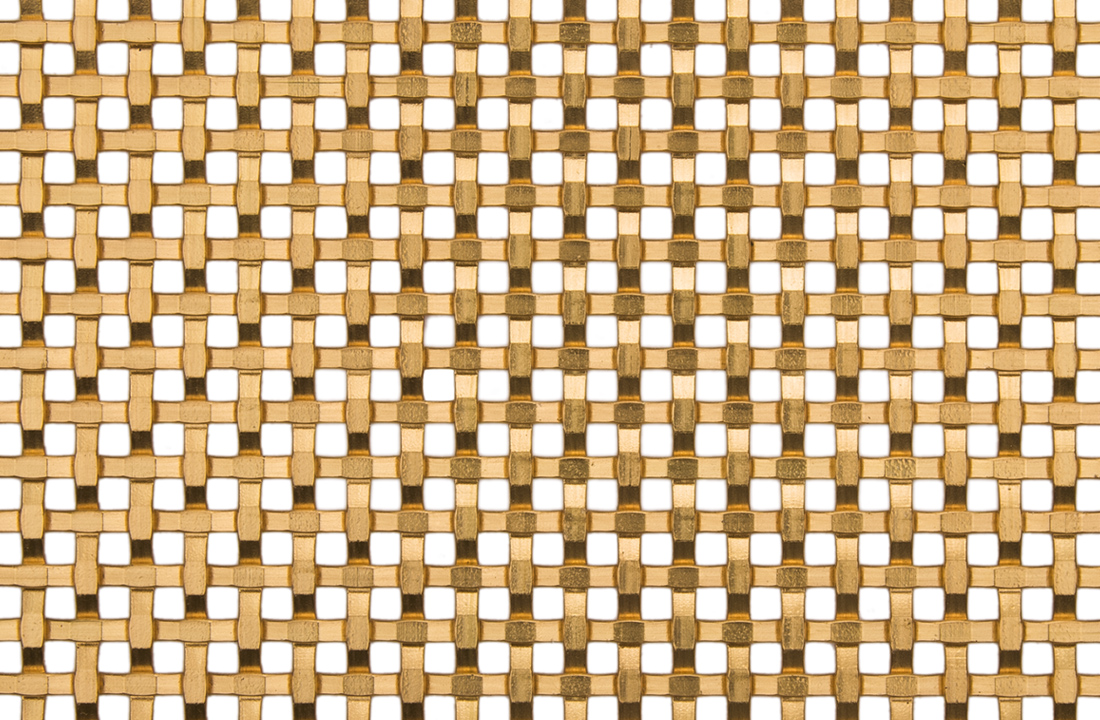

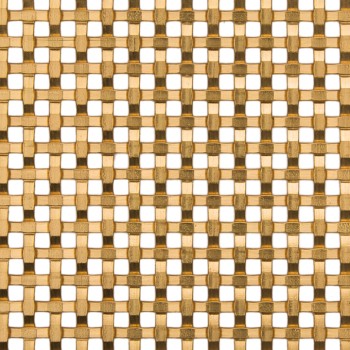

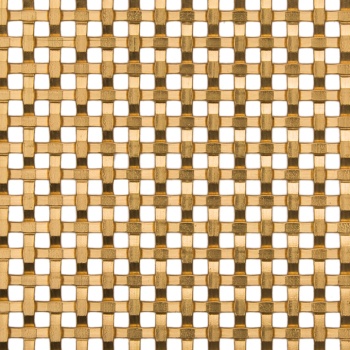

GW912 Blue Collar Fine 25.30% 1.780 60″ 168″ 0.080″ CB CB No

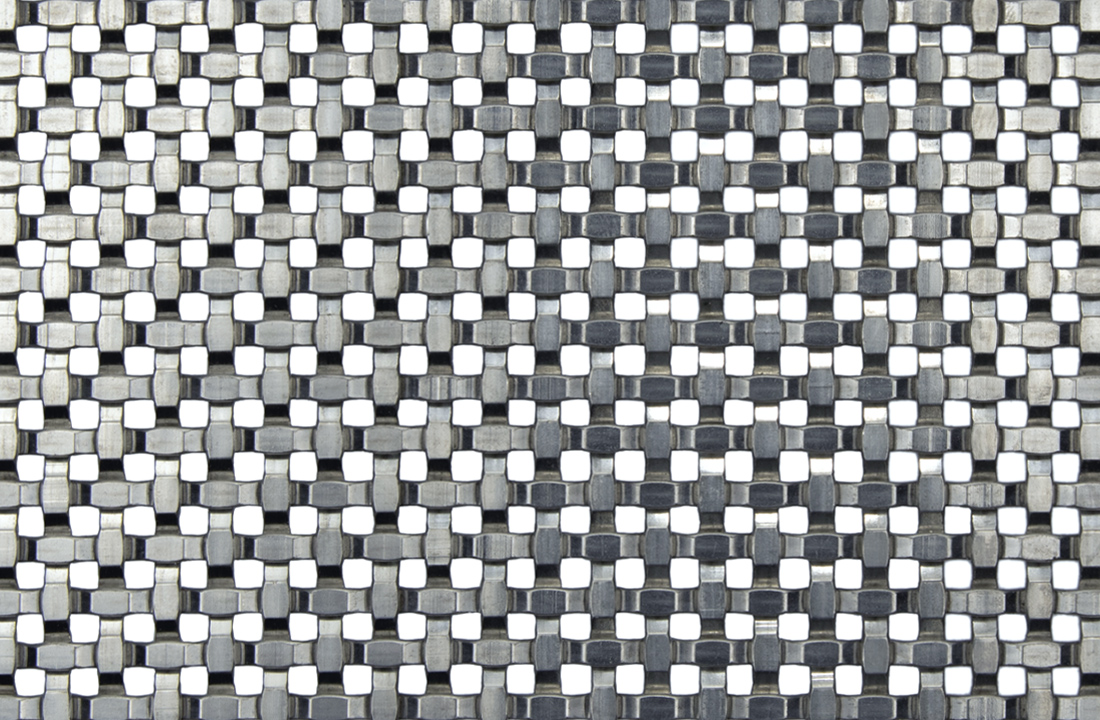

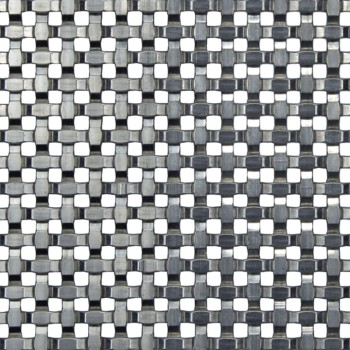

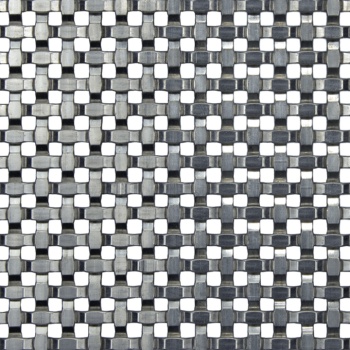

GW912A Blue Collar II Fine 21.60% 2.150 60″ 120″ 0.105″ SS SS No

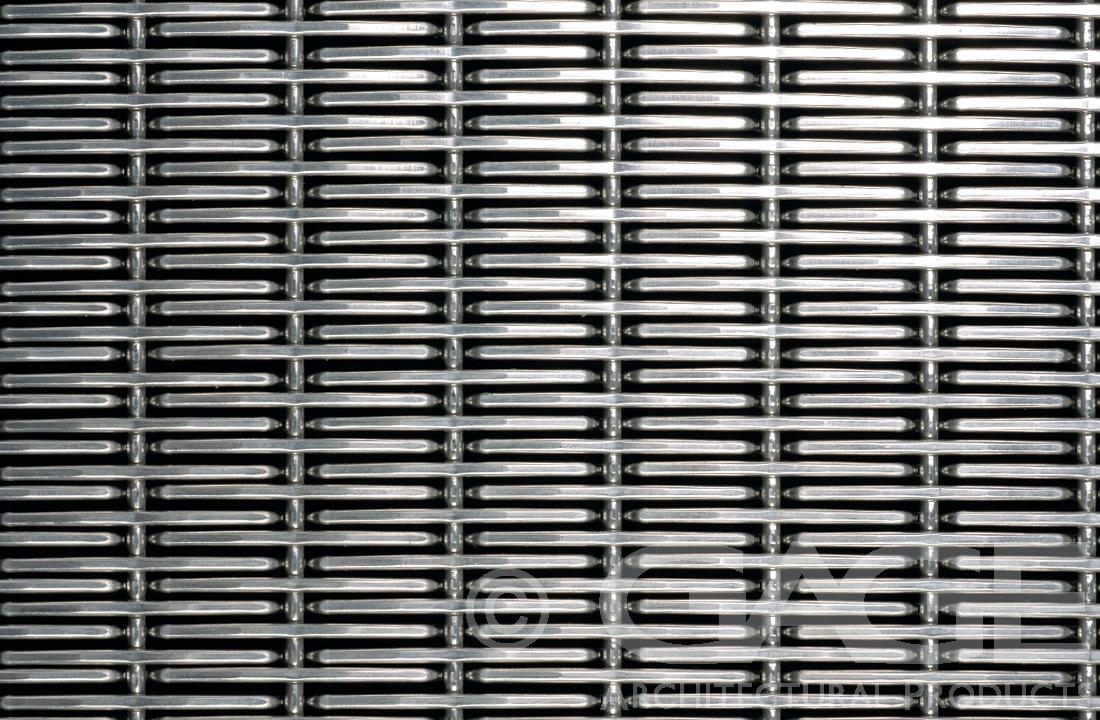

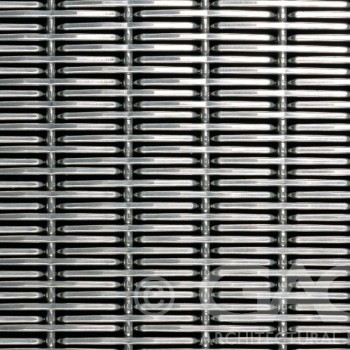

GW913 Highrise Medium 31.30% 1.570 72″ 168″ 0.143″ SS SS No

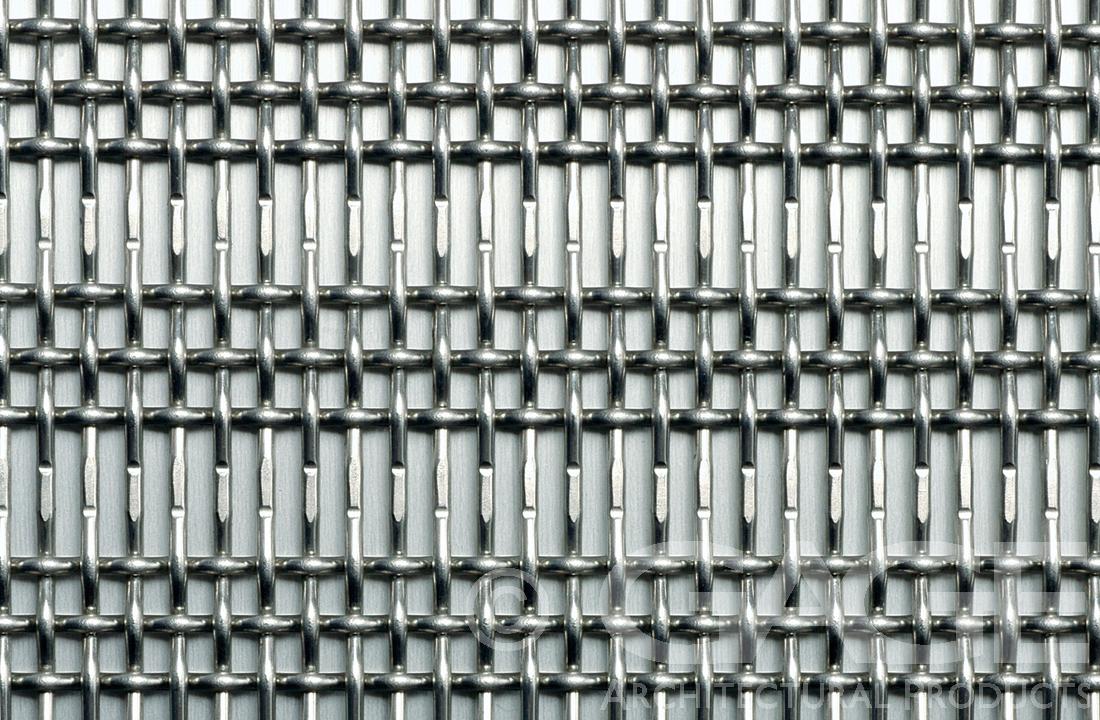

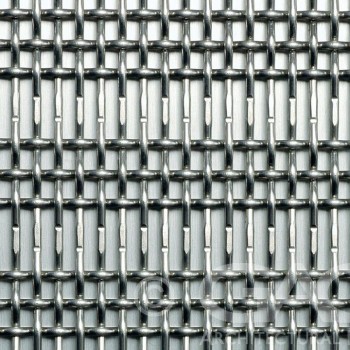

GW914 Corsican Fine 43.50% 1.180 96″ 168″ 0.108″ SS SS No

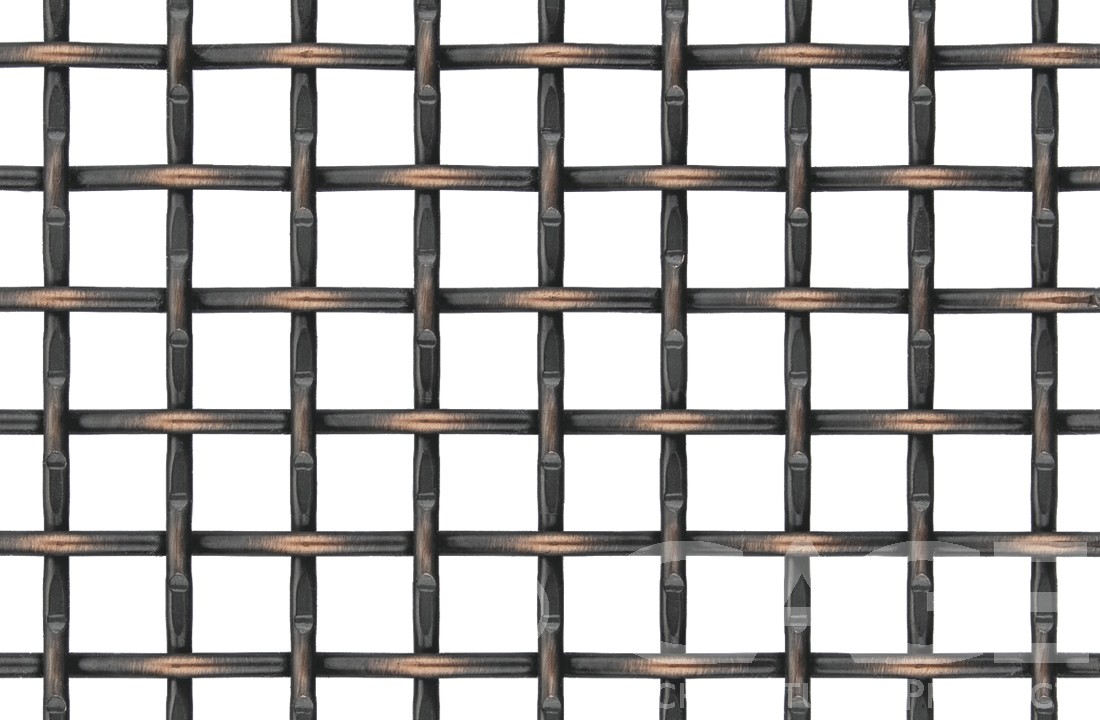

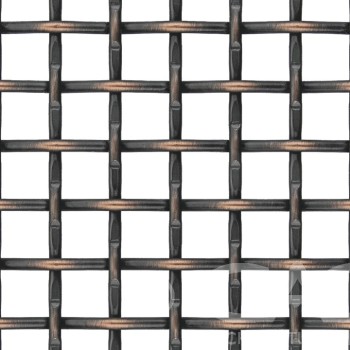

GW915 Intersection Medium 61.30% 1.510 96″ 240″ 0.210″ SS, CB, C, B SS, CB, C, B Yes*

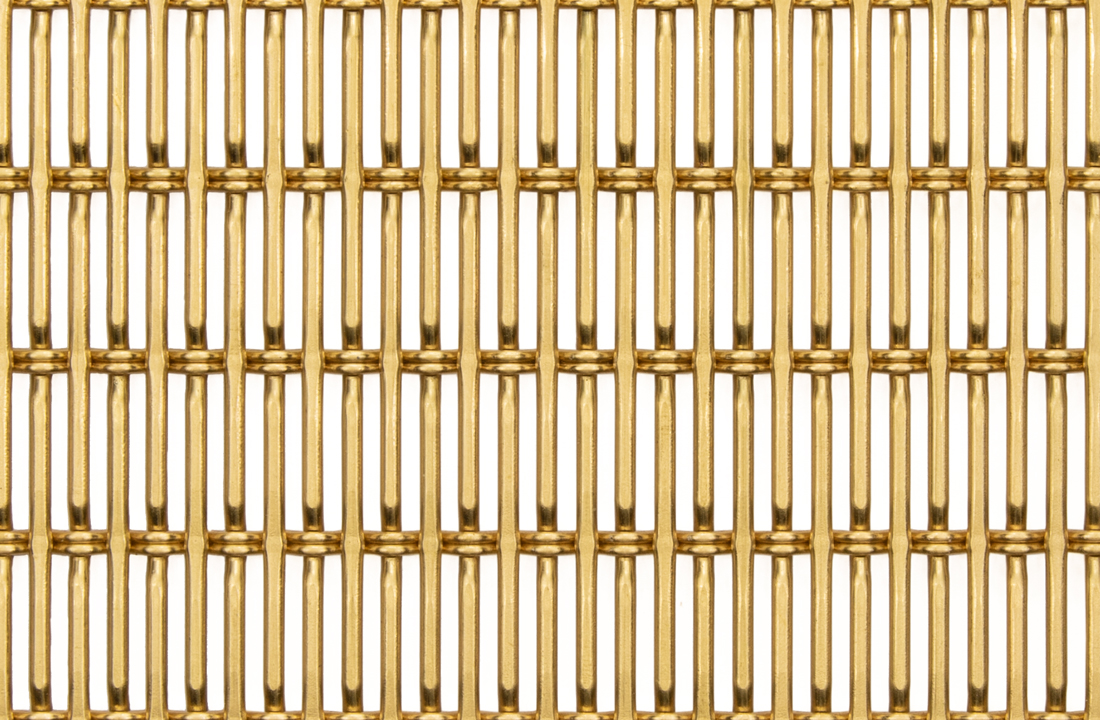

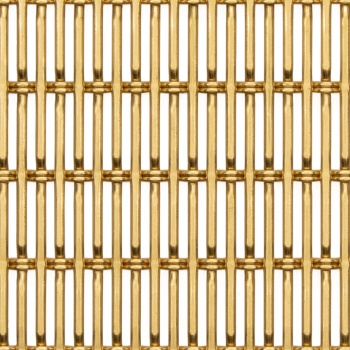

GW916 Linear Cross Fine 39.00% 1.674 72″ 168″ 0.130″ SS,CB SS, CB No
GW917 Organic Weave Fine 38.00% 1.220 60″ 120″ 0.108″ SS SS No

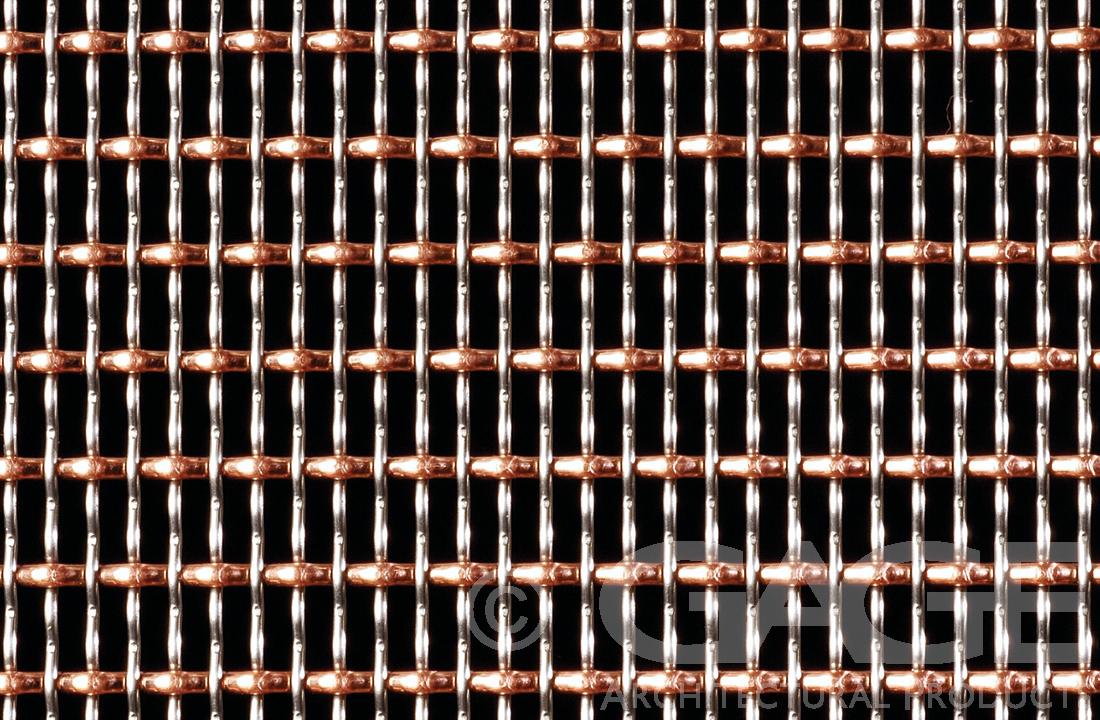

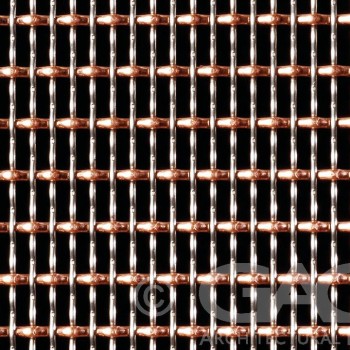

GW918 Madison Fine 53.90% 0.840 72″ 168″ 0.098″ CB, C, B SS Yes*
GW919 Micro Weave Fine 39.90% 0.964 72″ 168″ 0.076″ SS SS No

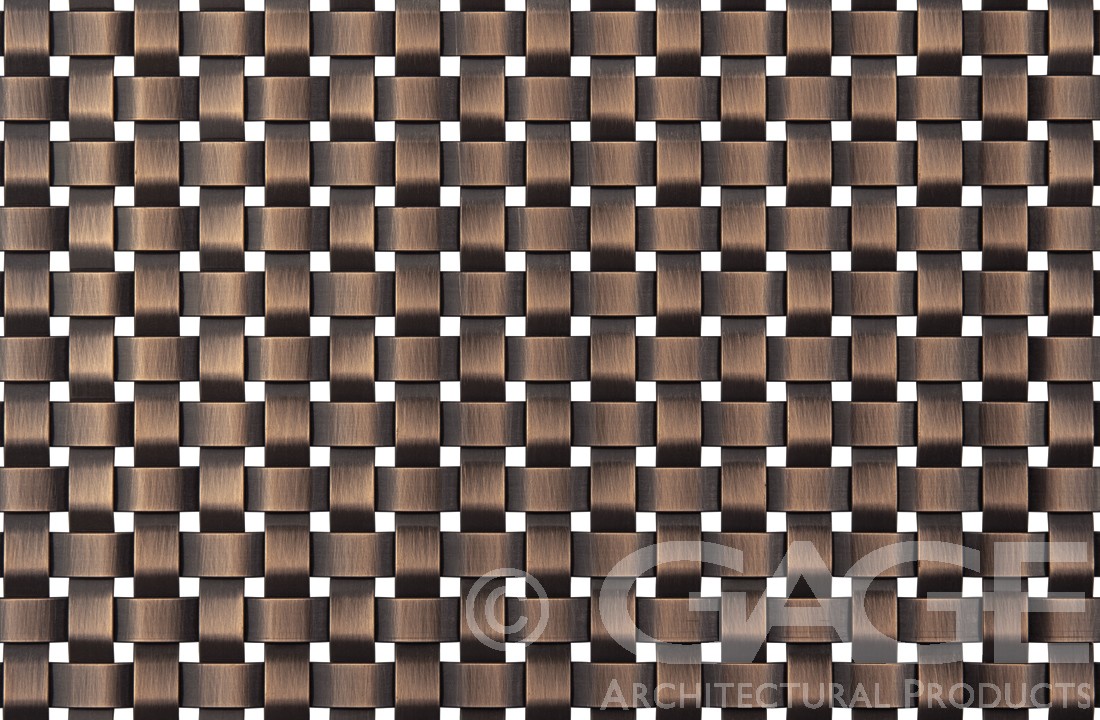

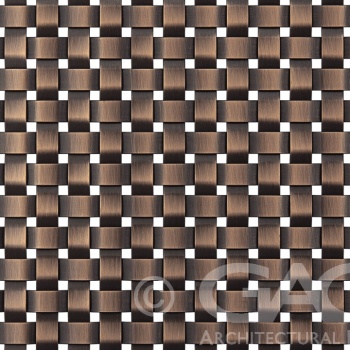

GW921 Chess Medium 9.70% 2.300 72″ 168″ 0.080″ SS, CB, B SS, CB, B No
GW923 Cinema Opaque 20.00% 3.050 60″ 120″ 0.222″ SS SS No

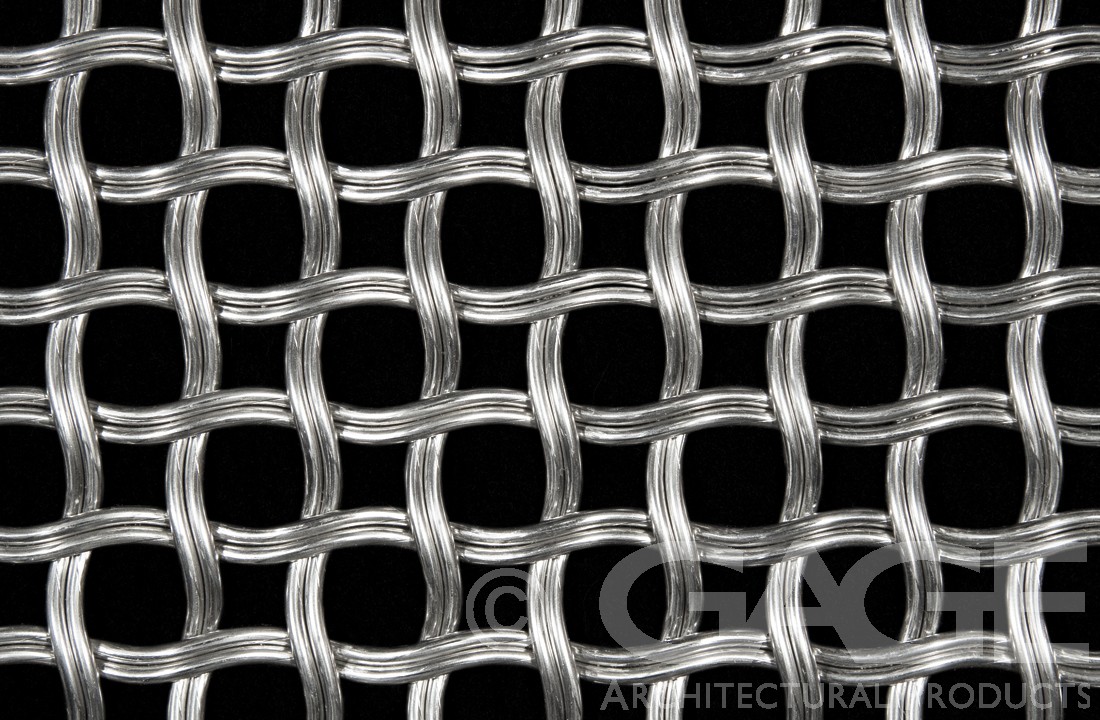

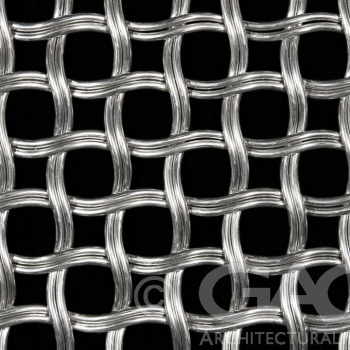

GW925 Infinity II Medium 41.40% 1.700 60″ 120″ 0.160″ SS SS No
GW926 Franco Opaque 0.00% 3.700 60″ 120″ 0.315″ SS SS No

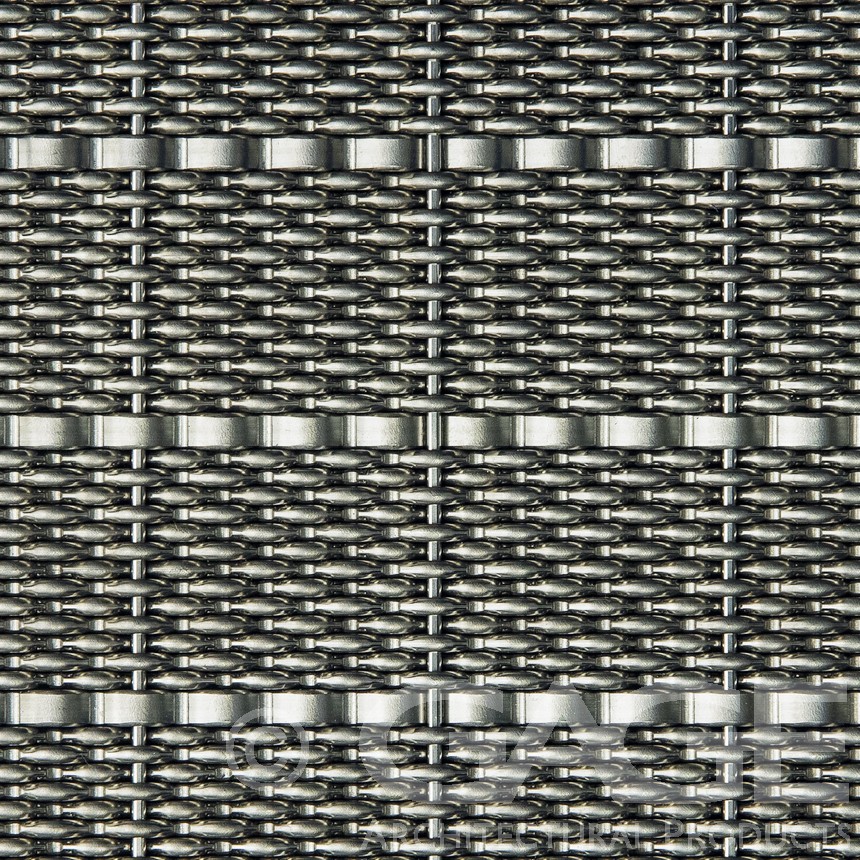

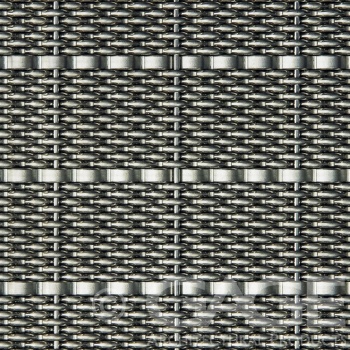

GW927 Akiko II Opaque 0.00% 2.2700 60″ 120″ 0.175″ SS SS N

* If mixed metal, one alloy must be Stainless Steel (SS).

**If mixed metal using a Commercial Bronze Alloy, “H” must be Stainless Steel.
